• Workboat Marine Anchors
1 - 25 of 26 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

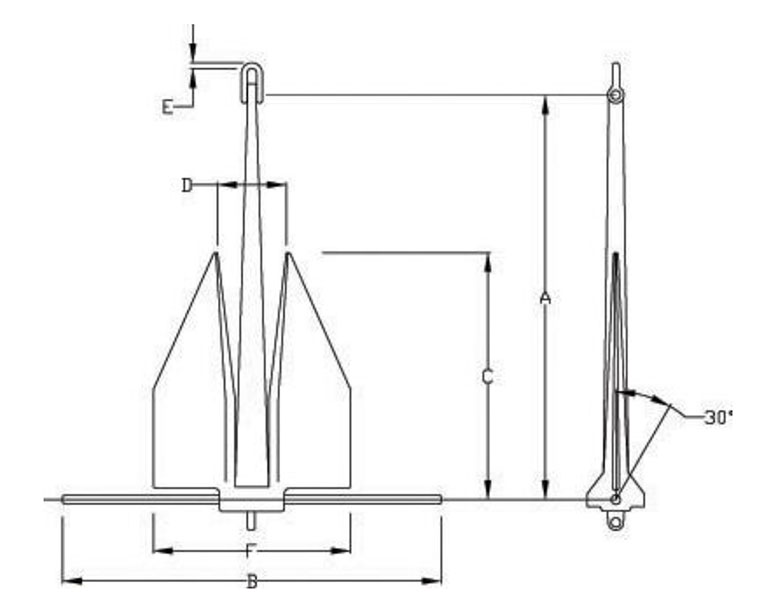

Item #

Item Name

Dimension A

Dimension B

Dimension C

Proof Test

N/A 1,600 Pound (lb) Proof Test Workboat Marine Anchor N/A 31.75 in806 mm N/A 27.38 in695 mm N/A 19.38 in492 mm N/A 1,600 lb727 kg
N/A 2,900 Pound (lb) Proof Test Workboat Marine Anchor N/A 40.00 in1,016 mm N/A 34.38 in873 mm N/A 24.38 in619 mm N/A 2,900 lb1,318 kg
N/A 5,000 Pound (lb) Proof Test Workboat Marine Anchor N/A 45.75 in1,162 mm N/A 39.50 in1,003 mm N/A 274.88 in6,982 mm N/A 5,000 lb2,273 kg
N/A 5,972 Pound (lb) Proof Test Workboat Marine Anchor N/A 47.50 in1,207 mm N/A 41.13 in1,045 mm N/A 28.31 in719 mm N/A 5,972 lb2,715 kg
N/A 8,300 Pound (lb) Proof Test Workboat Marine Anchor N/A 49.00 in1,245 mm N/A 42.50 in1,080 mm N/A 29.88 in759 mm N/A 8,300 lb3,773 kg
N/A 10,100 Pound (lb) Proof Test Workboat Marine Anchor N/A 52.50 in1,334 mm N/A 45.50 in1,156 mm N/A 33.00 in838 mm N/A 10,100 lb4,591 kg
N/A 13,000 Pound (lb) Proof Test Workboat Marine Anchor N/A 56.00 in1,422 mm N/A 48.50 in1,232 mm N/A 35.25 in895 mm N/A 13,000 lb5,909 kg
N/A 15,600 Pound (lb) Proof Test Workboat Marine Anchor N/A 58.00 in1,473 mm N/A 50.00 in1,270 mm N/A 39.56 in1,005 mm N/A 15,600 lb7,091 kg
N/A 18,100 Pound (lb) Proof Test Workboat Marine Anchor N/A 63.00 in1,600 mm N/A 54.50 in1,384 mm N/A 39.75 in1,010 mm N/A 18,100 lb8,227 kg
N/A 24,100 Pound (lb) Proof Test Workboat Marine Anchor N/A 67.50 in1,715 mm N/A 58.50 in1,486 mm N/A 42.50 in1,080 mm N/A 24,100 lb10,955 kg
N/A 30,000 Pound (lb) Proof Test Workboat Marine Anchor N/A 72.00 in1,829 mm N/A 62.00 in1,575 mm N/A 45.38 in1,153 mm N/A 30,000 lb13,636 kg
N/A 41,400 Pound (lb) Proof Test Workboat Marine Anchor N/A 77.00 in1,956 mm N/A 70.88 in1,800 mm N/A 48.50 in1,232 mm N/A 41,400 lb18,818 kg
N/A 52,300 Pound (lb) Proof Test Workboat Marine Anchor N/A 83.00 in2,108 mm N/A 71.75 in1,822 mm N/A 52.00 in1,321 mm N/A 52,300 lb23,773 kg
N/A 62,270 Pound (lb) Proof Test Workboat Marine Anchor N/A 89.00 in2,261 mm N/A 84.50 in2,146 mm N/A 56.00 in1,422 mm N/A 62,270 lb28,305 kg
N/A 72,500 Pound (lb) Proof Test Workboat Marine Anchor N/A 94.00 in2,388 mm N/A 89.00 in2,261 mm N/A 59.00 in1,499 mm N/A 72,500 lb32,955 kg
N/A 81,800 Pound (lb) Proof Test Workboat Marine Anchor N/A 99.00 in2,515 mm N/A 94.00 in2,388 mm N/A 62.50 in1,588 mm N/A 81,800 lb37,182 kg
N/A 90,700 Pound (lb) Proof Test Workboat Marine Anchor N/A 104.00 in2,642 mm N/A 98.75 in2,508 mm N/A 65.50 in1,664 mm N/A 90,700 lb41,227 kg
N/A 107,000 Pound (lb) Proof Test Workboat Marine Anchor N/A 112.00 in2,845 mm N/A 106.50 in2,705 mm N/A 70.50 in1,791 mm N/A 107,000 lb48,636 kg
N/A 121,300 Pound (lb) Proof Test Workboat Marine Anchor N/A 118.00 in2,997 mm N/A 112.00 in2,845 mm N/A 74.00 in1,880 mm N/A 121,300 lb55,136 kg
N/A 145,600 Pound (lb) Proof Test Workboat Marine Anchor N/A 129.00 in3,277 mm N/A 122.50 in3,112 mm N/A 77.38 in1,965 mm N/A 145,600 lb66,182 kg
N/A 165,600 Pound (lb) Proof Test Workboat Marine Anchor N/A 138.00 in3,505 mm N/A 131.00 in3,327 mm N/A 87.00 in2,210 mm N/A 165,600 lb75,273 kg
N/A 184,700 Pound (lb) Proof Test Workboat Marine Anchor N/A 145.00 in3,683 mm N/A 145.00 in3,683 mm N/A 91.00 in2,311 mm N/A 184,700 lb83,955 kg
N/A 205,000 Pound (lb) Proof Test Workboat Marine Anchor N/A 152.00 in3,861 mm N/A 152.00 in3,861 mm N/A 95.75 in2,432 mm N/A 205,000 lb93,182 kg
N/A 222,700 Pound (lb) Proof Test Workboat Marine Anchor N/A 160.00 in4,064 mm N/A 160.00 in4,064 mm N/A 101.00 in2,565 mm N/A 222,700 lb101,227 kg
N/A 249,400 Pound (lb) Proof Test Workboat Marine Anchor N/A 172.00 in4,369 mm N/A 163.00 in4,140 mm N/A 108.38 in2,753 mm N/A 249,400 lb113,364 kg
