• Eye and Eye Swivels
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Size

Workload Limit

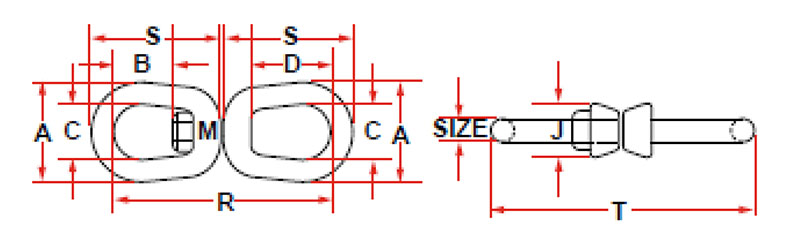

Dimension A

Dimension B

N/A 1/4 Inch (in) Size Eye and Eye Swivel N/A 1/4 in0.06 mm N/A 850 lb386 kg N/A 1.25 in32 mm N/A 0.69 in18 mm
N/A 5/16 Inch (in) Size Eye and Eye Swivel N/A 5/16 in0.08 mm N/A 1,250 lb568 kg N/A 1.63 in41 mm N/A 0.81 in21 mm
N/A 3/8 Inch (in) Size Eye and Eye Swivel N/A 3/8 in0.10 mm N/A 2,250 lb1,023 kg N/A 2.00 in51 mm N/A 0.94 in24 mm
N/A 1/2 Inch (in) Size Eye and Eye Swivel N/A 1/2 in0.13 mm N/A 3,600 lb1,636 kg N/A 2.50 in64 mm N/A 1.31 in34 mm
N/A 5/8 Inch (in) Size Eye and Eye Swivel N/A 5/8 in0.16 mm N/A 5,200 lb2,364 kg N/A 3.00 in76 mm N/A 1.56 in40 mm
N/A 3/4 Inch (in) Size Eye and Eye Swivel N/A 3/4 in0.19 mm N/A 7,200 lb3,273 kg N/A 3.50 in89 mm N/A 1.75 in45 mm
N/A 7/8 Inch (in) Size Eye and Eye Swivel N/A 7/8 in0.22 mm N/A 10,000 lb4,545 kg N/A 4.00 in102 mm N/A 2.06 in53 mm
N/A 1 Inch (in) Size Eye and Eye Swivel N/A 1 in0.25 mm N/A 12,500 lb5,682 kg N/A 4.50 in114 mm N/A 2.31 in59 mm
N/A 1-1/4 Inch (in) Size Eye and Eye Swivel N/A 1-1/4 in0.32 mm N/A 18,000 lb8,182 kg N/A 5.63 in143 mm N/A 2.69 in69 mm
N/A 1-1/2 Inch (in) Size Eye and Eye Swivel N/A 1-1/2 in0.38 mm N/A 45,200 lb20,545 kg N/A 7.00 in178 mm N/A 4.19 in108 mm
